GMC 12 spoke Black and MIlled 20x8.5 Wheels 8x180 Rims with Goodyear WRANGLER TRAILRUNNER AT LT 275/65R20 Tires (MPN: ALY5950U45 - 742299681)
Visit us at 2600 S Broadway, Denver, CO 80210 or call for details.
One-of-a-kind set — available now
Specifications for Part # ALY5950U45 - 742299681
Rim Specifications
| Rim Brand | GMC + Goodyear |
|---|---|
| Rim Model | 12 spoke |
| Rim MFG# | ALY5950U45 |
| Bolt Pattern | 8x180 |
| Diameter | 20" |
| Width | 8.5" |
| Offset | 47mm |
| Center Bore | 124.1mm |
| Finish | Black and MIlled |
Tire Specifications
| Tire Brand | Goodyear |
|---|---|
| Tire Model | WRANGLER TRAILRUNNER AT LT |
| Tire MFG# | 742299681 |
| Tire Size | 275/65R20 |
| Section Width | 10.8" (275 mm) |
| Sidewall Height | 7.0" (179 mm) |
| Tire Type | LIGHT TRUCK |
| Load Range | E |
| Load Index | 126 |
| Speed Rating | S |
| Ply Rating | 10 |
| Tread Depth | 12/32" |
| Overall Diameter | 34.1" |
| Max Load | 3750/3415 lbs |
| Max Pressure | 80 psi |
| Sidewall | BSW |
| Treadwear Warranty | 55,000 mi |
| UPC | 697662155577 |
| 3PMSF Severe Snow | Yes |
| Tire Condition | Fair |
Features
- Large interlocking tread blocks
- Multi-angle sipes
- Rugged stepped shoulder
- Saw-tooth block edges
- Optimized tread pattern
- Carries the Three-Peak Mountain Snowflake 3PMSF symbol - 5-rib LT sizes 245 series and wider only
- 55,000 Mile85,000 km Goodyear Limited Tread Life Warranty exclusions apply see full warranty for details
- 30-Day Goodyear Pledge
- Goodyear Highway Auto and Light Truck Tire Replacement Limited Warranty
Benefits
- Help to deliver strong on and off-road durability
- Offer all-season traction on and off the road
- Helps to provide added traction in deep mud and snow
- Enhances tread life and helps to quiet noise from on-road driving
Product Description

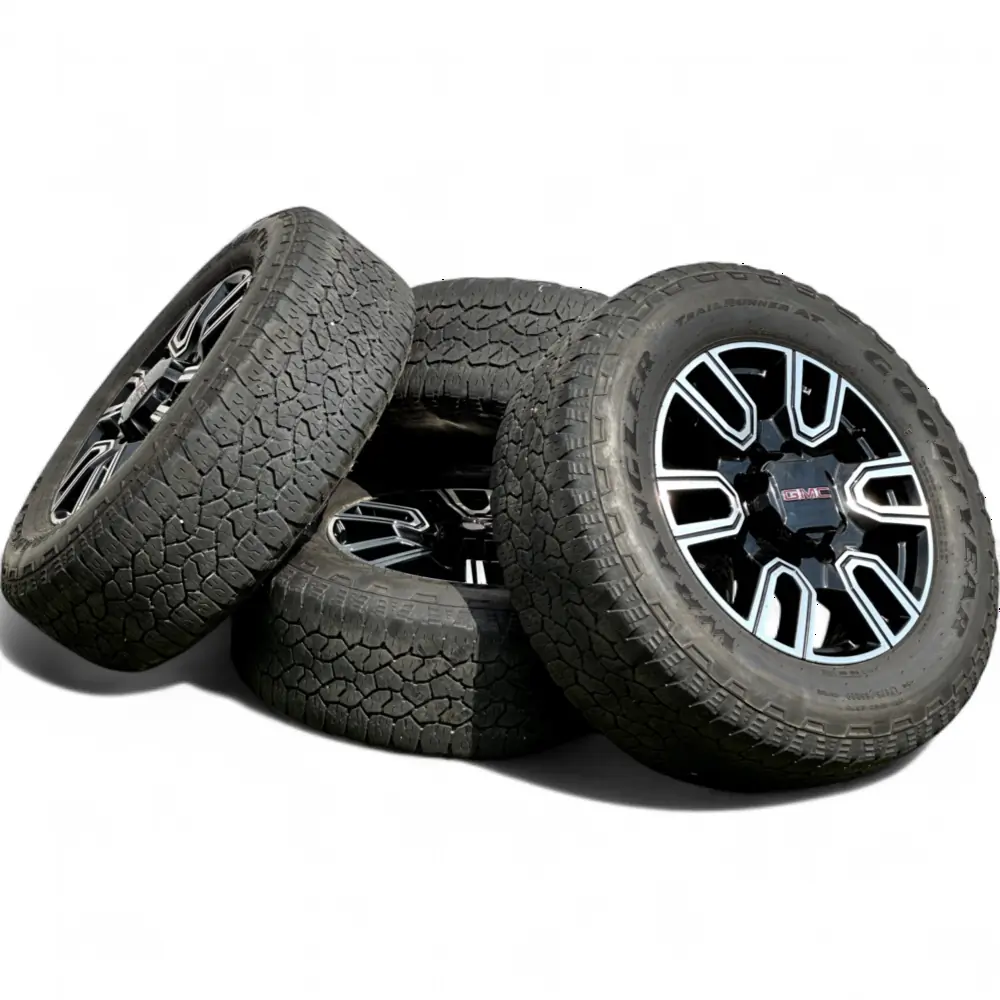

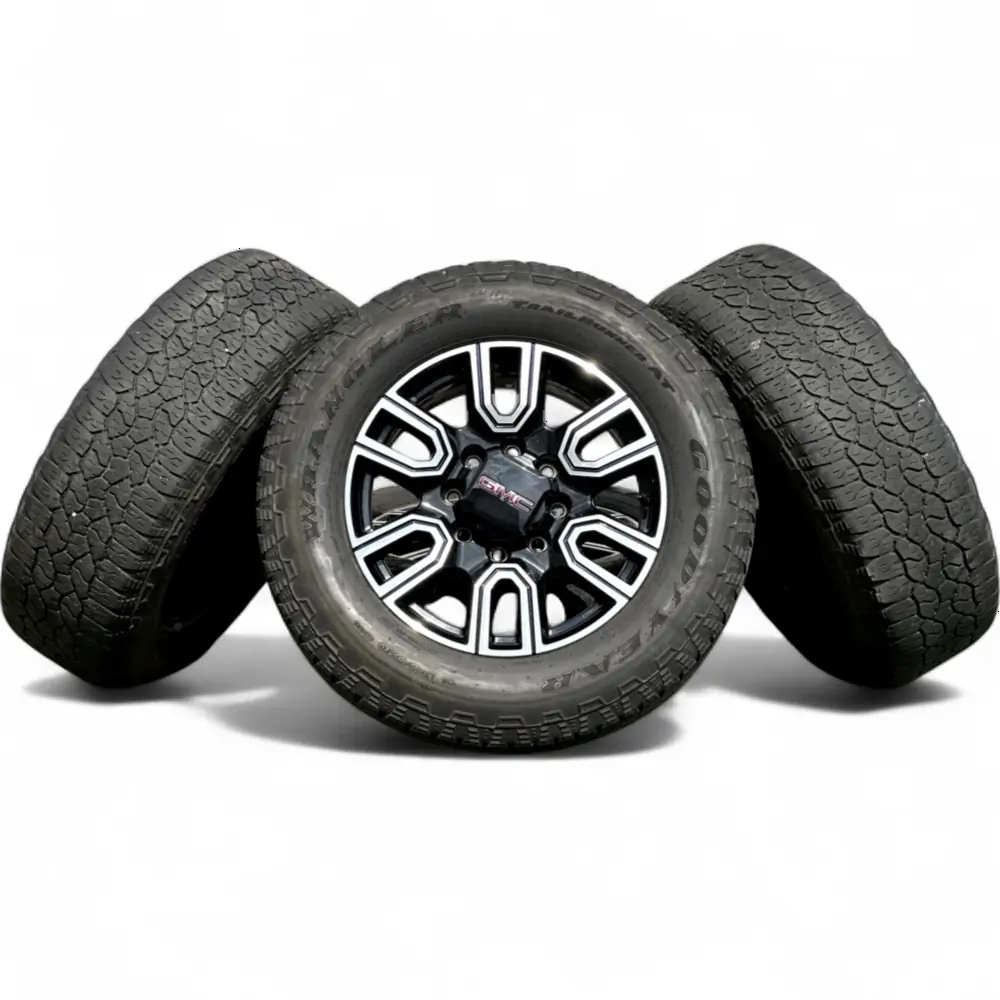

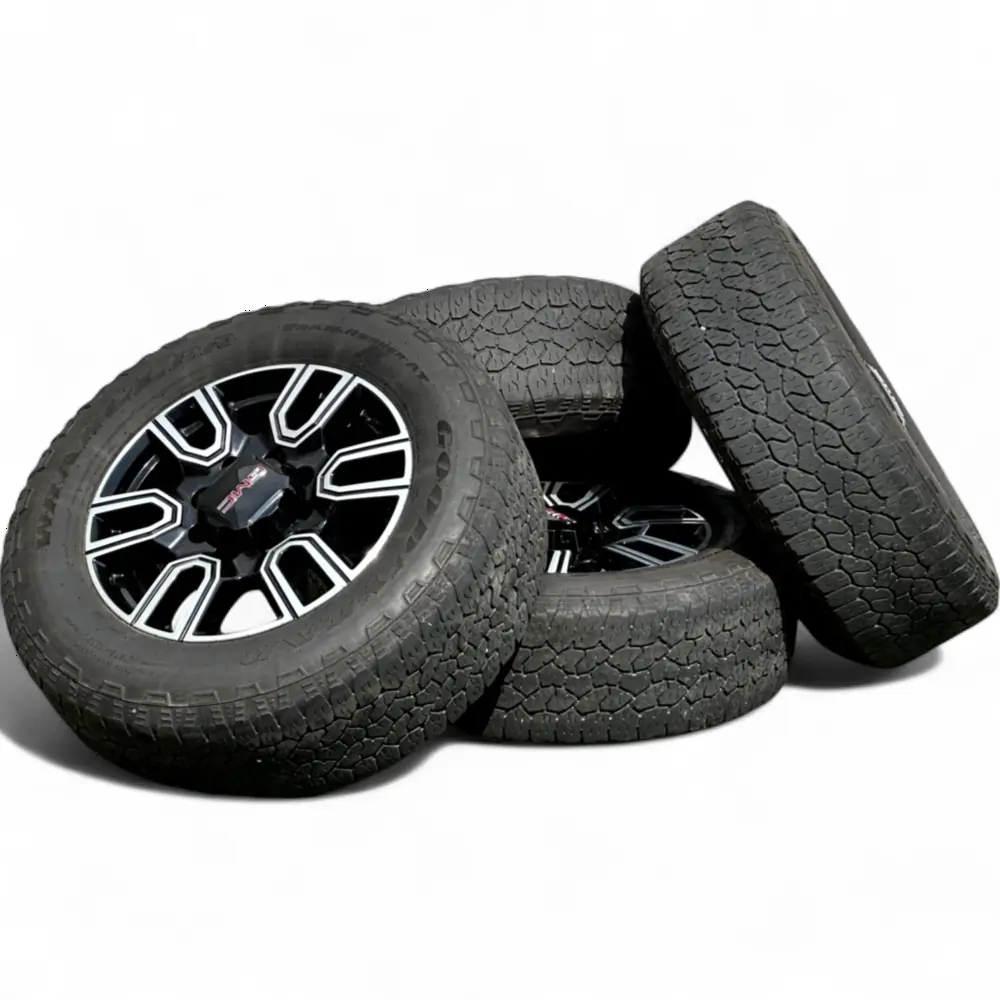

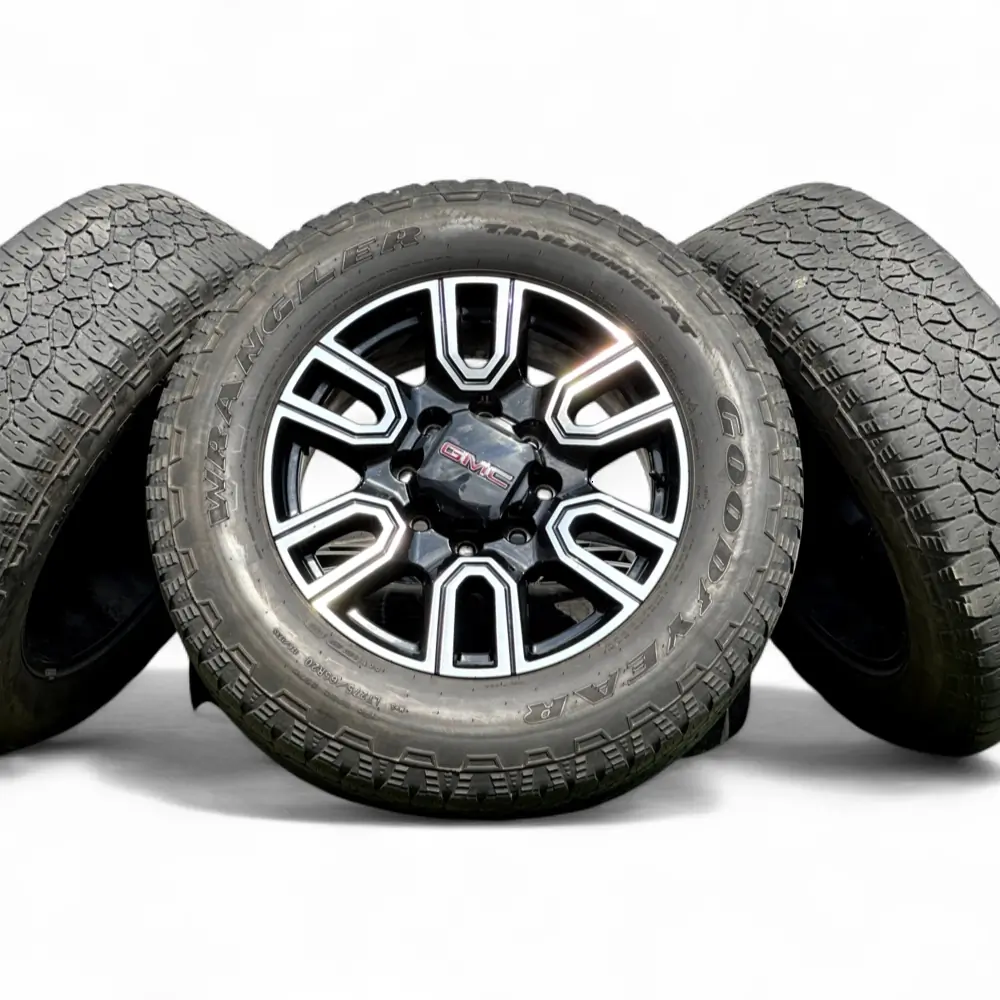

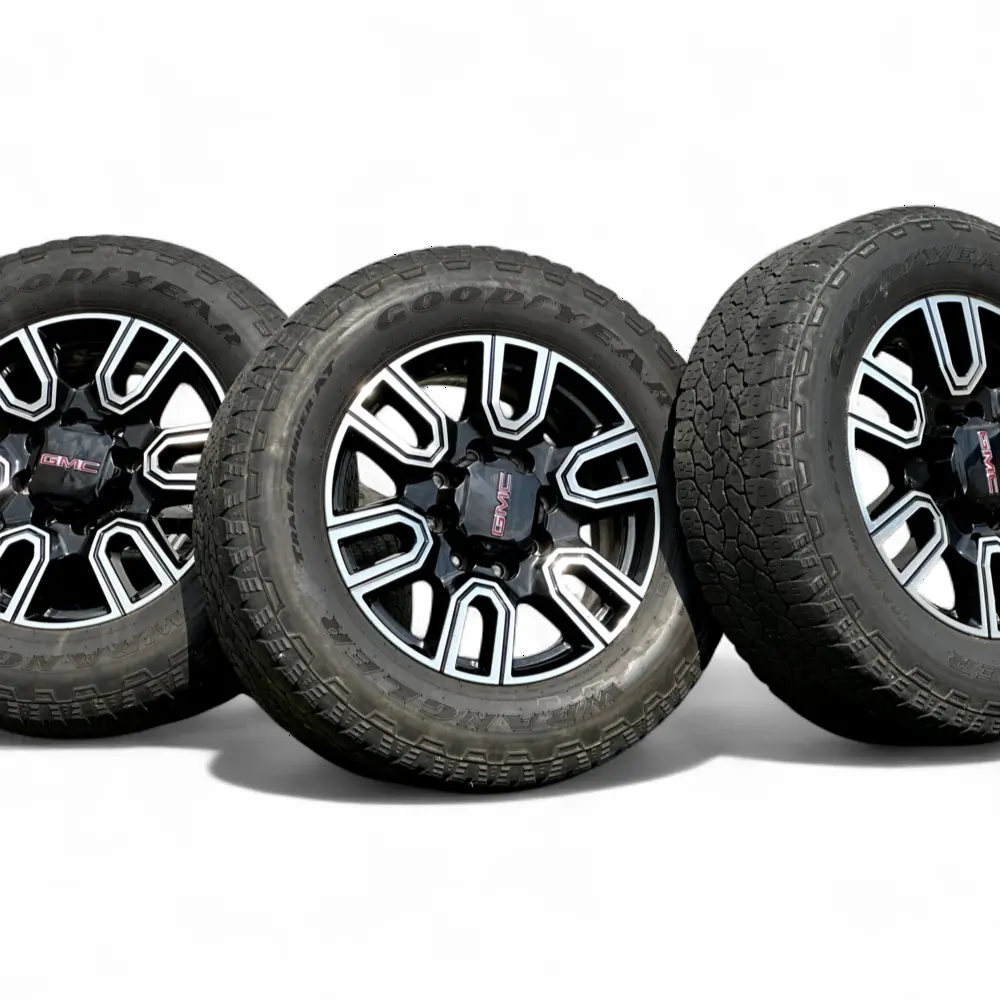

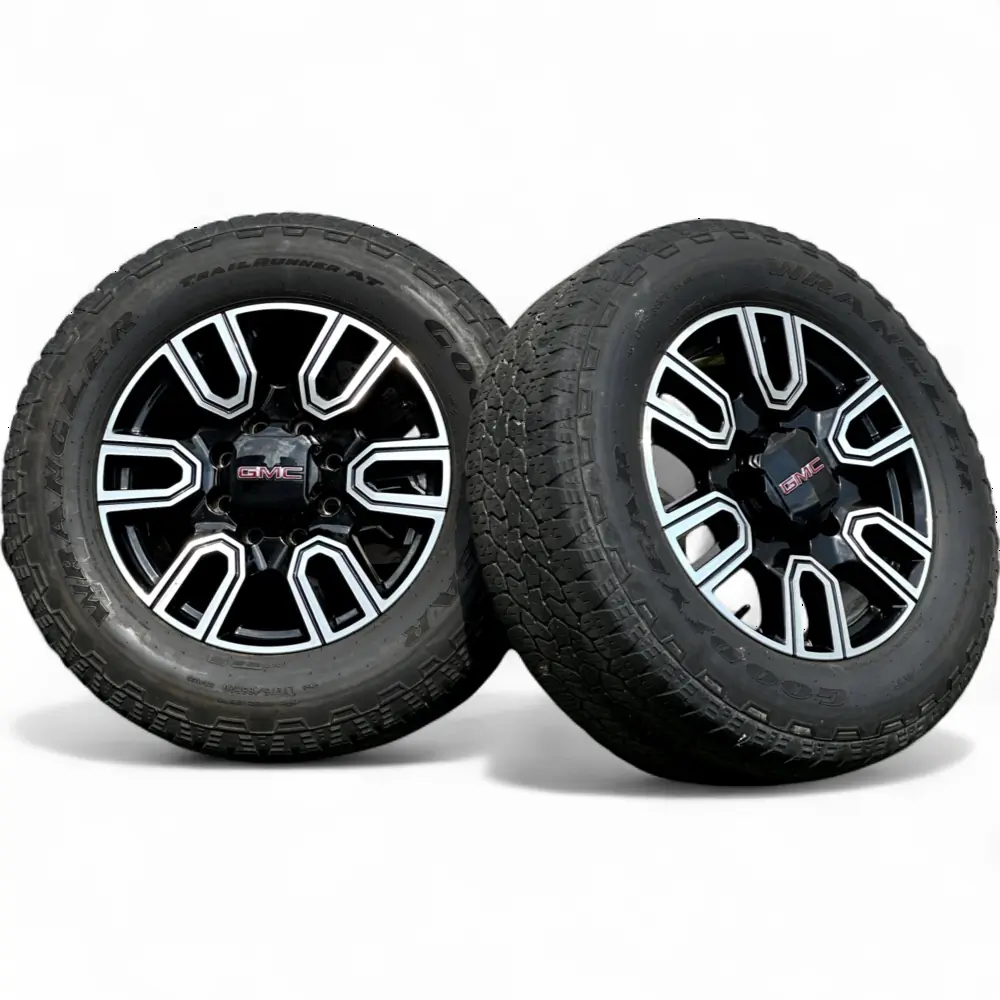

Good condition 20" GMC 12 Spoke wheels in Black and MIlled factory finish, wrapped in Goodyear Wrangler Trailrunner AT LT275/65R20 tires (tires in fair condition).
Tires are Load Range E, 10 ply — all-weather traction, amazing off-road including Mud, Snow, and Rain conditions.
Wheels are 20x8.5J with a high positive offset ET+47 for a tucked, clean stance.
Overall tire diameter is 34" inches.
This setup retails for $3,284 online.
Package price is $1,295 before tax or installation if you need it.
Cash, Zelle, or card (+2%) accepted.
Bolt pattern is 8x180 (also known as 8x7.09 inches).
Confirmed fitment:
Chevy Silverado 3500HD — year 2020 to year 2026
GMC Sierra 2500HD — year 2011 to year 2026
Chevy Silverado 2500HD — year 2011 to year 2026
GMC Sierra 3500HD — year 2011 to year 2026
Great match for trims like WT, Custom, LT, LTZ, High Country, ZR2, Sierra, SLE, SLT, AT4, AT4X, Denali, Denali Ultimate.
Installation, test fitment, TPMS service, and lug nuts available.
Free test fitment available — call or text to set up an appointment.
Vehicle Fitment for GMC + Goodyear ALY5950U45 - 742299681
Fits 4 matching vehicles (searched 20" wheels 7.5"–9.5" wide, this wheel is 8.5"). Confirm year, trim, hub bore, and offset before ordering.
- 2011-2026 Chevy Silverado 2500 HD
- 2020-2026 Chevy Silverado 3500 HD
- 2011-2026 GMC Sierra 2500HD
- 2011-2026 GMC Sierra 3500HD
