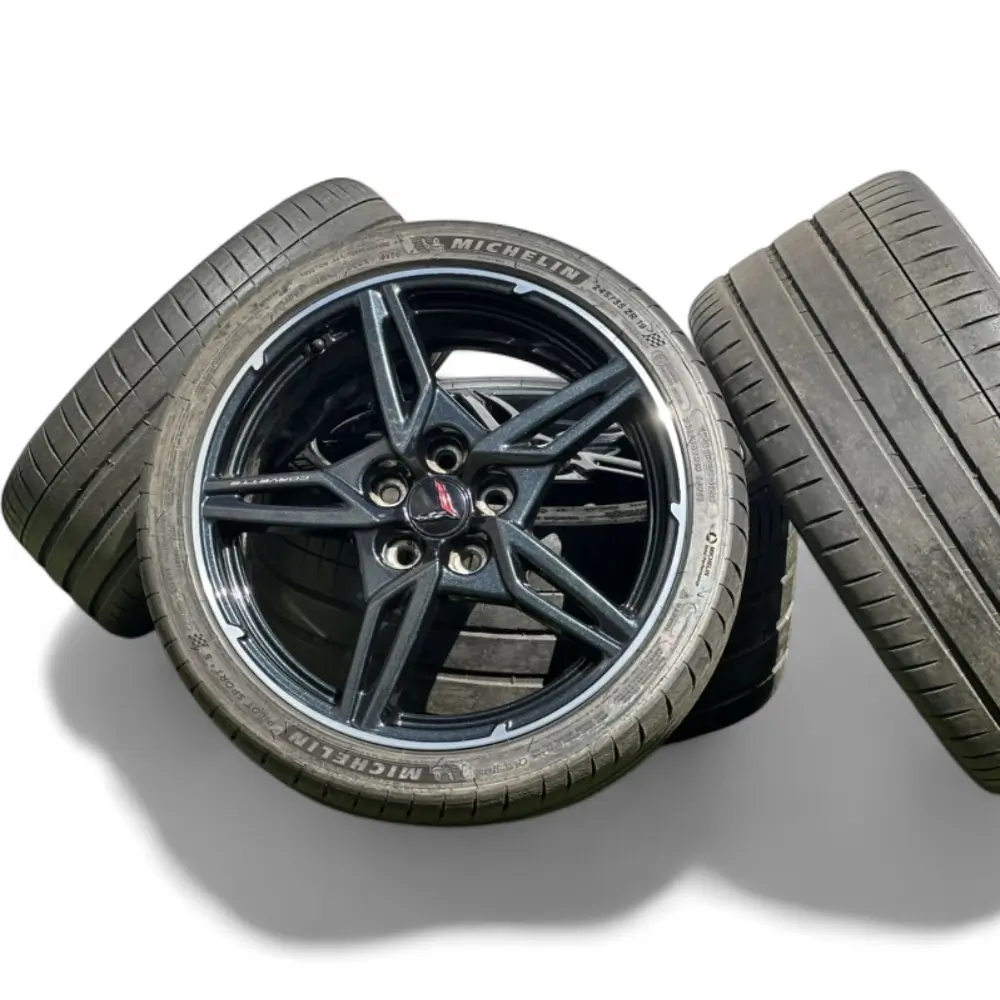

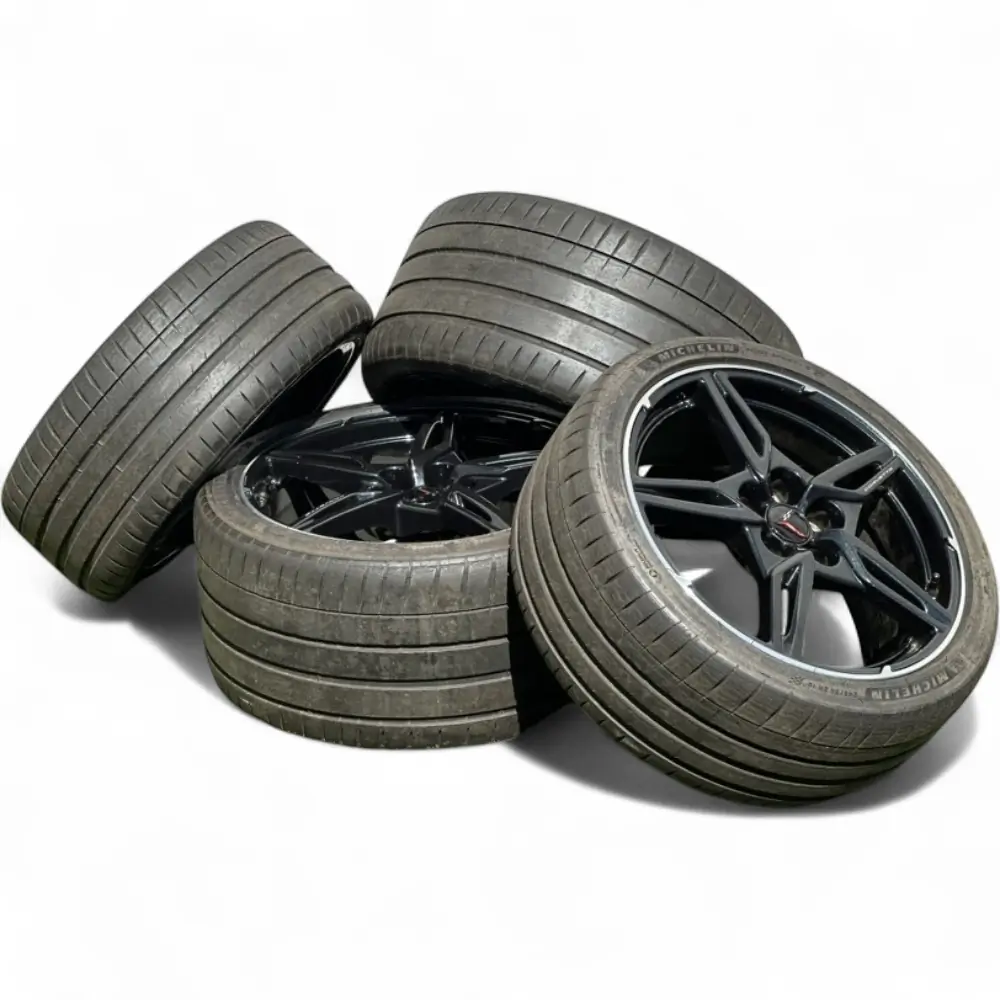

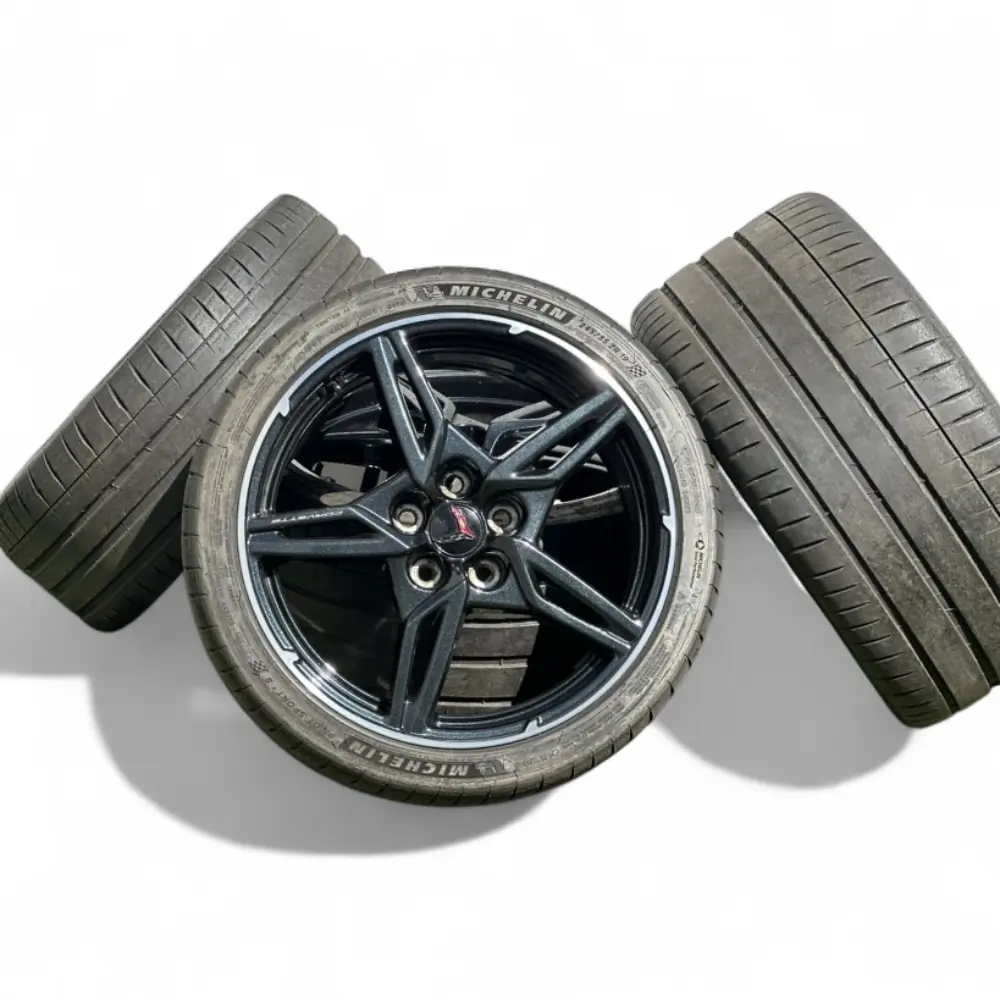

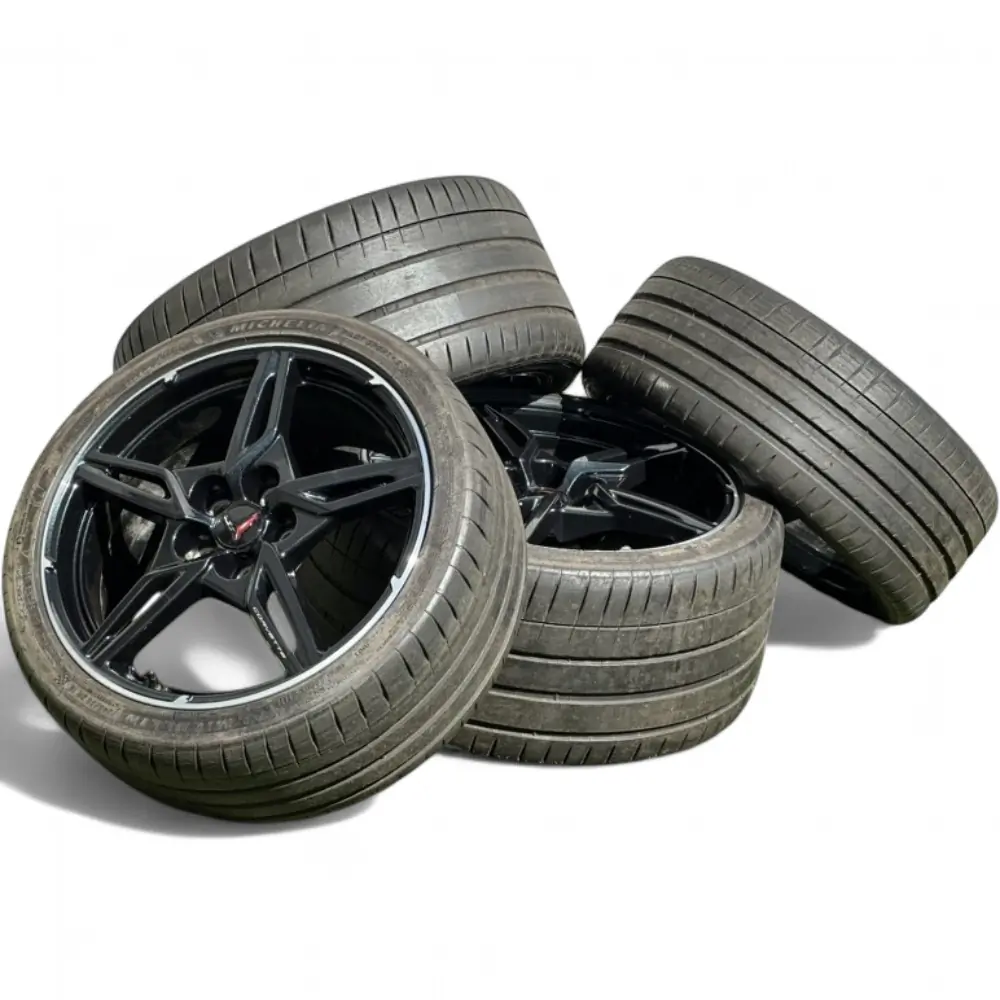

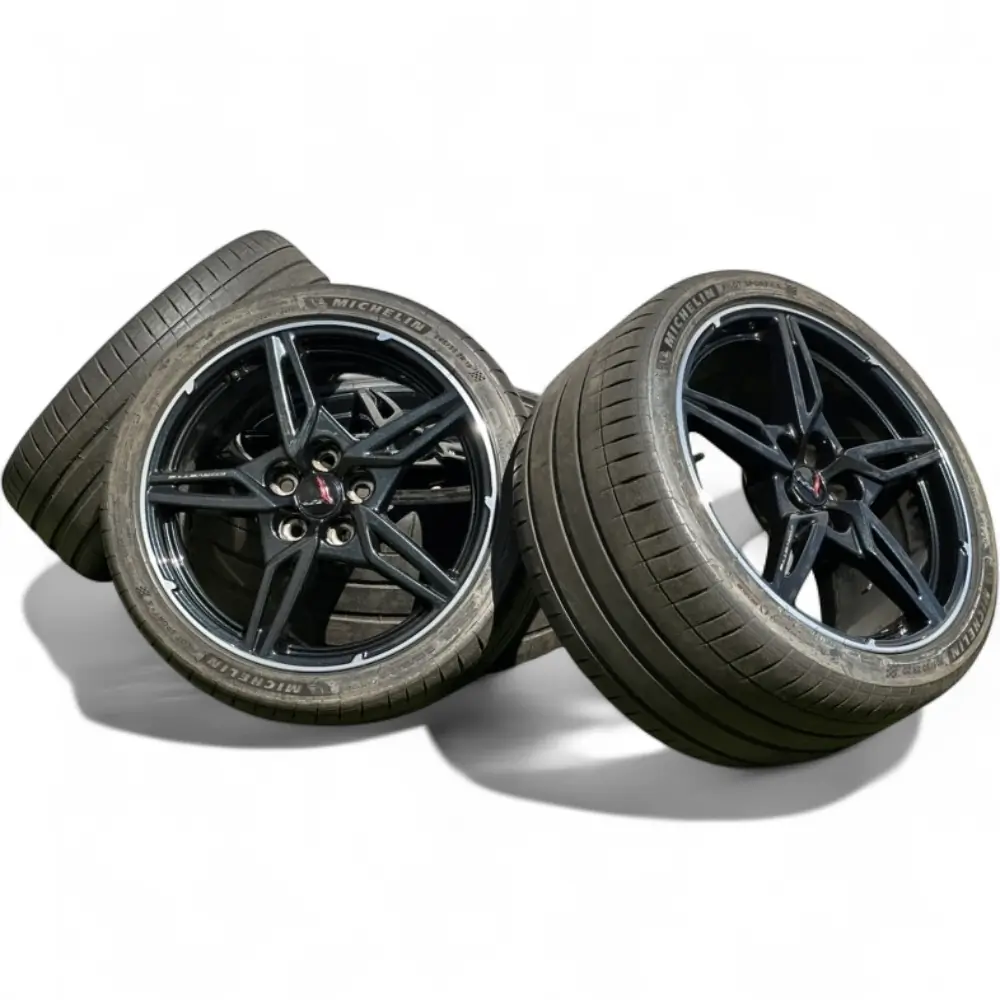

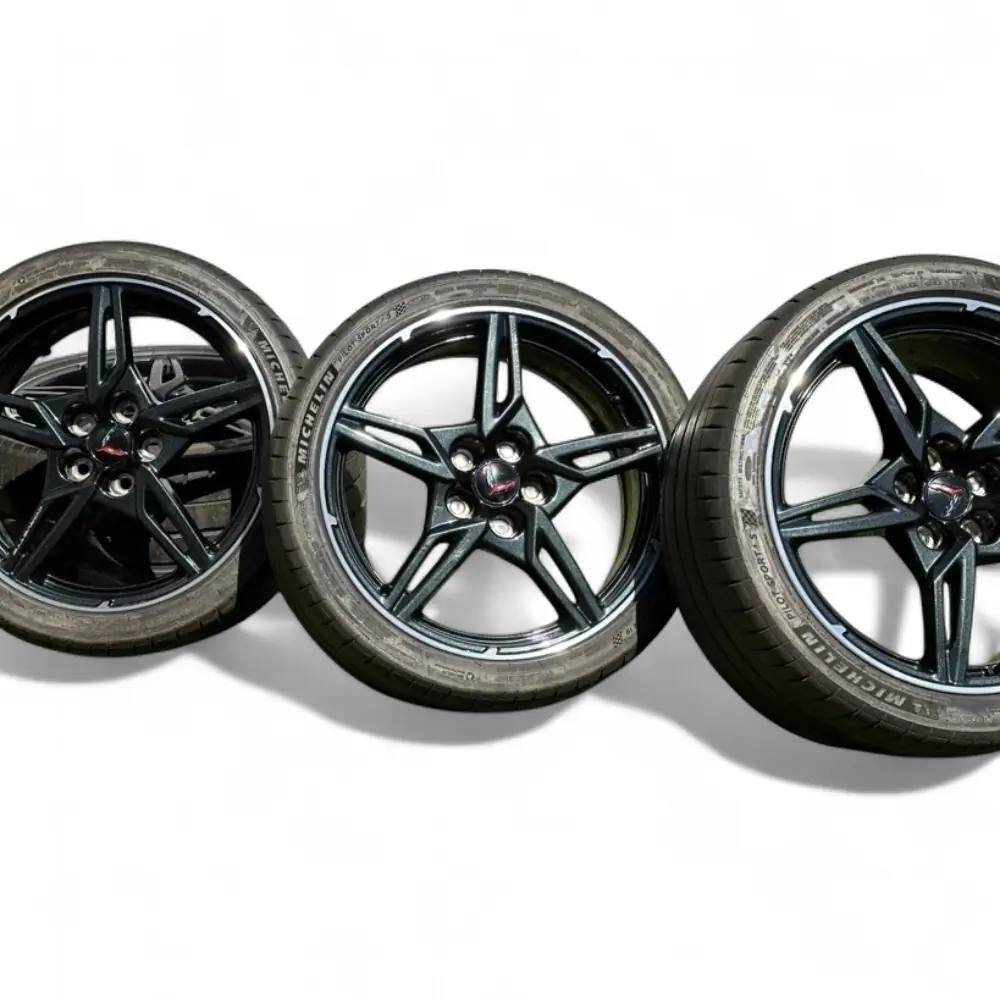

Chevrolet 5 Double Spoke Powder Coat Black w/ Machined Lip 19x8.5 Wheels 5x120 Rims with Michelin Pilot Sport 4S 245/35R19 Tires (MPN: 84785085 - 03744)
Visit us at 2600 S Broadway, Denver, CO 80210 or call for details.
One-of-a-kind set — available now
Specifications for Part # 84785085 - 03744
Rim Specifications
| Rim Brand | Chevrolet + Michelin |
|---|---|
| Rim Model | 5 Double Spoke |
| Rim MFG# | 84785085 |
| Bolt Pattern | 5x120 |
| Diameter | 19" |
| Width | 8.5" |
| Offset | 52mm |
| Center Bore | 66.9mm |
| Front Finish | Powder Coat Black w/ Machined Lip |
Rear Wheels (Staggered) | |
| Rear Rim Model | 5 Double Spoke |
| Rear Rim MFG# | 84785087 |
| Rear Diameter | 20" |
| Rear Width | 11" |
| Rear Offset | 64mm |
| Rear Center Bore | 66.9mm |
| Rear Finish | Powder Coat Black w/ Machined Lip |
Tire Specifications
| Tire Brand | Michelin |
|---|---|
| Tire Model | Pilot Sport 4S |
| Tire MFG# | 03744 |
| Tire Size | 245/35R19 |
| Section Width | 9.6" (245 mm) |
| Sidewall Height | 3.4" (86 mm) |
| Tire Type | PASSENGER/CUV/SUV |
| Load Range | XL |
| Load Index | 93 |
| Speed Rating | (Y) |
| Ply Rating | XL |
| Tread Depth | 9.5/32" |
| Overall Diameter | 25.8" |
| Max Load | 1433 lbs |
| Max Pressure | 50 psi |
| UTQG | 300AAA |
| Sidewall | BSW |
| Treadwear Warranty | 30,000 mi |
| UPC | 086699037442 |
| Tire Condition | Good |
Rear Tires (Staggered) | |
| Rear Tire Brand | Michelin |
| Rear Tire Model | Pilot Sport 4S |
| Rear Tire MFG# | 06890 |
| Rear Tire Size | 305/30R20 |
| Rear Load Range | XL |
| Rear Tire Condition | Good |
Features
- Dynamic Response Technology adapts to the road
- Revolutionary multi-compound construction
- Total Performance™ overcomes the usual trade-off of wear for grip
- Premium design and deep rim protector
- 30,000 Mile50,000 Kilometer Manufacturers Treadwear Limited Warranty
- Standard Limited Warranty - All Michelin tires
Benefits
- For Ultra-precise steering, outstanding cornering power and remarkably good tread life
- Delivers unmatched levels of dry and wet grip
- To deliver both incredible traction and improved tread life
- Provides a dark velvet effect on external sidewalls whilst guarding against light wheel damage
Product Description
Like new, original Chevrolet Corvette staggered Wheels 5 Double Spoke in Powder Coat Black w/ Machined Lip factory finish, wrapped in Michelin Pilot Sport 4S 245/35R19 front / 305/30R20 rear tires (tires in good condition).
Tires are Extra Load — responsive handling and maximum cornering grip.
Front wheels are 19x8.5J with a high positive offset ET+52 for a tucked, clean stance.
This is a STAGGERED setup — the front and rear are different:
Front rims are 19x8.5J ET+52 wrapped in nice Michelin 245/35ZR19 Pilot Sport Total Performance (also known as 245/35R19)
Rear rims are 20x11J ET+64 wrapped in nice Michelin 305/30ZR20 Pilot Sport Total Performance (also known as 305/30R20)
Note: staggered setups cannot be rotated front to rear.
Front tire overall diameter is about 25.8" (commonly referred to as a 26").
This setup retails for $3,484 online.
Package price is only $2095 before tax or installation if you need it.
Cash, Zelle, or card (+2%) accepted.
Bolt pattern is 5x120 (also known as 5x4.72 inches).
Confirmed fitment:
Will fit Chevrolet Corvette years 2020 and 2021 as well as 2022 and year 2023 Stingray, Grand Sport, Z06, and the ZR1 Z51 C8 and of course the 2024 year models and the latest 2025 year corvette.
Cadillac ATS-V — year 2016 to year 2019
Chevy SS — year 2014 to year 2017
Chevy Malibu — year 2013 to year 2015
Cadillac CT4-V — year 2021 to year 2026
Chevy Malibu Limited — year 2016
Will also fit the following vehicles if paired with smaller or bigger tires:
Pontiac G8 — year 2008 to year 2009
Cadillac CT5 — year 2019 to year 2026
Honda Pilot — year 2009 to year 2022
Cadillac CT6-V — year 2019 to year 2020
Chevy Camaro — year 2010 to year 2024
Lexus LS — year 2006 to year 2026
Acura RL — year 2005 to year 2013
Honda Odyssey — year 2005 to year 2017
Cadillac CTS-V — year 2009 to year 2019
Chevy Caprice — year 2011 to year 2017
Saab 9-5 — year 2010 to year 2012
Buick Regal GS — year 2012 to year 2017
Acura RLX — year 2013 to year 2021
Lucid Air — year 2021 to year 2025
Cadillac CT6 — year 2016 to year 2020
Will also fit:
Toyota Mirai — year 2021 to year 2026
Acura TL — year 2004 to year 2014
Lamborghini Aventador — year 2011 to year 2017
Buick LaCrosse — year 2010 to year 2016
Honda Prelude — year 2026
Acura Integra Type-S — year 2023 to year 2026
Buick Regal — year 2011 to year 2017
Honda Civic Type R — year 2022 to year 2026
Installation, test fitment, TPMS service, and lug nuts available.
Want to see them on your vehicle? Complimentary test fitment, just reach out.
Vehicle Fitment for Chevrolet + Michelin 84785085 - 03744
Fits 50 matching vehicles (searched 19" wheels 7.5"–9.5" wide, this wheel is 8.5"). Confirm year, trim, hub bore, and offset before ordering.
- 2023-2026 Acura Integra Type-S
- 2007-2026 Acura MDX
- 2019-2026 Buick Envision
- 2021-2026 Cadillac CT4-V
- 2019-2026 Cadillac CT5
- 2020-2026 Cadillac CT5-V
- 2021-2025 Acura TLX
- 2022-2025 BYD Han
- 2019-2025 Cadillac XT4
- 2016-2023 Acura NSX
- 2013-2021 Acura RLX
- 2014-2021 BMW 2 Series
- 2016-2021 BMW M2
- 2014-2020 BMW 4 Series
- 2015-2020 BMW 4 Series Gran Coupe
- 2015-2020 BMW M4
- 2016-2020 Cadillac CT6
- 2019-2020 Cadillac CT6-V
- 2008-2019 BMW X6
- 2016-2019 Cadillac ATS-V
- 2008-2019 Cadillac CTS
- 2009-2019 Cadillac CTS-V
- 2013-2019 Cadillac XTS
- 2007-2018 BMW 3 Series
- 2014-2018 BMW 3 Series Gran Turismo
- 2004-2018 BMW 6 Series
- 2001-2018 BMW M3
- 2006-2018 BMW M6
- 2015-2018 BMW X4
- 1999-2018 BMW X5
- 2010-2017 BMW 5 Series Gran Turismo
- 2004-2017 BMW X3
- 2011-2017 Buick Regal
- 2012-2017 Buick Regal GS
- 2008-2016 BMW 5 Series
- 2005-2016 BMW M5
- 2009-2016 BMW Z4
- 2010-2016 Buick LaCrosse
- 2002-2015 BMW 7 Series
- 2013-2015 BMW X1
- 2011-2015 BMW Alpina B7
- 2009-2014 Acura TL
- 2010-2014 BMW X6 M
- 2005-2013 Acura RL
- 2009-2013 Acura ZDX
- 2011-2013 BMW 1 Series
- 2010-2013 BMW X5 M
- 2007-2011 Bentley Azure
- 2008-2011 Bentley Brooklands
- 2003-2009 Bentley Arnage
